產品描述
| PZ643H/F/X氣動凸緣單夾式刀型閘閥的詳細資料： |
|
|

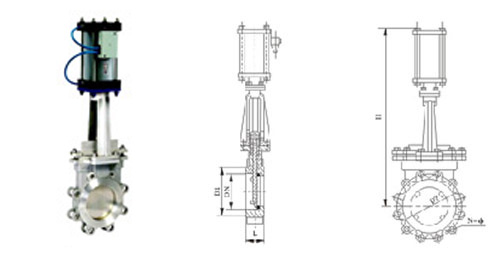

主要外形及連接尺寸(mm)
|
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
MPa |
DN |
L |
D1 |
D2 |
H |
n-M |
|
0.6 MPa |
50 |
48 |
90 |
110 |
335 |
4-M12 |
1.0 MPa |
50 |
48 |
100 |
125 |
335 |
4-M16 |
|
65 |
48 |
110 |
130 |
363 |
4-M12 |
65 |
48 |
120 |
145 |
363 |
4-M16 | ||
|
80 |
51 |
125 |
150 |
395 |
4-M16 |
80 |
51 |
135 |
160 |
395 |
4-M16 | ||
|
100 |
51 |
145 |
170 |
465 |
4-M16 |
100 |
51 |
155 |
180 |
465 |
8-M16 | ||
|
125 |
57 |
175 |
200 |
530 |
8-M16 |
125 |
57 |
185 |
210 |
530 |
8-M16 | ||
|
150 |
57 |
200 |
225 |
630 |
8-M16 |
150 |
57 |
210 |
240 |
630 |
8-M20 | ||
|
200 |
70 |
255 |
280 |
750 |
8-M16 |
200 |
70 |
265 |
295 |
750 |
8-M20 | ||
|
250 |
70 |
310 |
335 |
900 |
12-M16 |
250 |
70 |
320 |
350 |
900 |
12-M20 | ||
|
300 |
76 |
362 |
395 |
1120 |
12-M20 |
300 |
76 |
368 |
400 |
1120 |
12-M20 | ||
|
350 |
76 |
412 |
445 |
1260 |
12-M20 |
350 |
76 |
428 |
460 |
1260 |
16-M20 | ||
|
400 |
89 |
462 |
495 |
1450 |
16-M20 |
400 |
89 |
482 |
515 |
1450 |
16-M22 | ||
|
450 |
89 |
518 |
550 |
1600 |
16-M20 |
450 |
89 |
532 |
565 |
1600 |
20-M22 | ||
|
500 |
114 |
568 |
600 |
1800 |
16-M20 |
500 |
114 |
585 |
620 |
1800 |
20-M22 | ||
|
600 |
114 |
670 |
705 |
2300 |
20-M22 |
600 |
114 |
685 |
725 |
2300 |
20-M27 | ||
|
700 |
127 |
775 |
810 |
2500 |
24-M22 |
700 |
127 |
800 |
840 |
2500 |
24-M27 | ||
|
800 |
127 |
880 |
920 |
2800 |
24-M27 |
800 |
127 |
898 |
950 |
2800 |
24-M30 | ||
|
900 |
154 |
980 |
1020 |
3100 |
27-M27 |
900 |
154 |
1005 |
1050 |
3100 |
28-M30 | ||
|
1000 |
165 |
1080 |
1120 |
3400 |
28-M27 |
1000 |
165 |
1115 |
1160 |
3400 |
28-M30 | ||
|
1200 |
190 |
1295 |
1340 |
3600 |
32-M30 |
1200 |
180 |
1325 |
1380 |
3600 |
32-M36 |
