SJZ型多功能微電子水處理器是本公司運用現代電子技術和分子表面能量重新排列技術研制成功的新一代除垢、防垢、殺菌、滅藻、節能節水的水處理裝置。現已在空調制冷循環系統、工業冷卻水系統、各冷卻塔及熱交換系統、冷熱水供水系統易滋生細菌藻類和易生水垢的冷水中得到了廣泛的應用。該產品被國家科委和建設部推薦為“高新技術推廣產品”。在此基礎上，我公司還成功開發了SJZ-Z型自動排污電子水處理器，SJZG-S型手搖式過濾器以及SJZG-Z型自動排污式過濾器。該系列產品科技含量高、安全性能好、效率高、投資小、回收快，深受廣大用戶的好評和贊譽。
.
性能范圍 RANGE OF PERFORMANCE 流量Flow Q:1.25～100m3/h 功率Power:＜100～350W
最高工作壓力Max.working pressure:1.0-1.6MPa
進出口徑Inlet and outlet aperture:Φ25～Φ600mm
使用條件CONDITONS OF USE 輸入電源Input power:220V/50Hz
適用水溫Suitable water temperature:0℃～90℃
適用水質Suitable water nature:以CaCo3計總硬度小于700mg/L
Total hardness less than 700mg/L counted with CaCO3

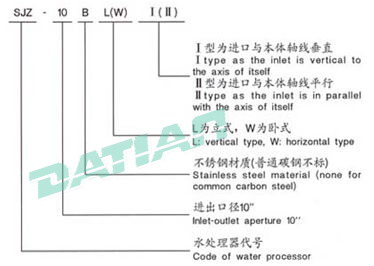

型號意義MODEL MEANING 適用場合 SUITABLE FIELDS
本系列水處理器適用于：各種易滋生細菌、藻類和易生水垢的水系統、空調制冷循環水系統、各種熱交換及冷卻塔系統、游泳池系統。
This series water processor is suitable for: various water systems easy to produce bacterial algae and water filth, air-conditioning refrigeration cycle water system, various heat exchange and cooling tower systems and swim-ming pool system.

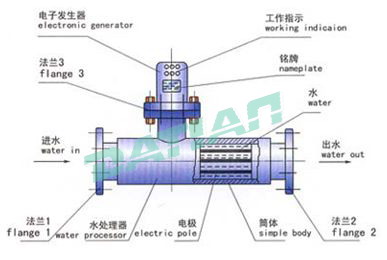

結構簡圖STRUCTURAL DRAWING

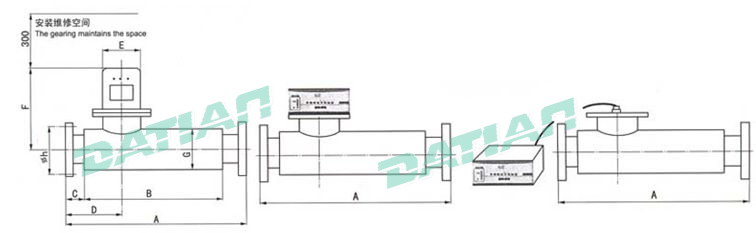

SJZ型性能參數及外形尺寸圖表SJZ TYPE PERFORMANCE AND EXTERNAL DIMENSIONS FIG. TABLE
| 序號 No |
型號 Type |
出入口尺寸 Out –In dimensions |
流量 Capacity (m3/h) |
A | B | C | D | E | F | G | 輸入功率 Input power (W) |
連接法蘭中心圈Conneet flange centercir Φh/孔數-螺孔直徑Bore number-Bore diameter |
最高工作壓力Max. work pressure (MPa) | 重量 Weight (kg) | |
| in | mm | ||||||||||||||
| 1 | SJZ-1 | 1 | 25 | 4-5.8 | 620 | 460 | 80 | 200 | 160 | 300 | 100 | ＜50 | Φ85/4-Φ14 | 1.0 | 20 |
| 2 | SJZ-1.5 | 1.5 | 40 | 9-12.8 | 680 | 520 | 80 | 200 | 160 | 300 | 100 | ＜50 | Φ110/4-Φ18 | 1.0 | 23 |
| 3 | SJZ-2 | 2 | 50 | 20 | 680 | 520 | 80 | 300 | 150 | 300 | 130 | ＜100 | Φ125/4-Φ18 | 1.0 | 25 |
| 4 | SJZ-2.5 | 2.5 | 65 | 26-30 | 720 | 560 | 80 | 300 | 160 | 350 | 150 | ＜100 | Φ145/4-Φ18 | 1.0 | 32 |
| 5 | SJZ-3 | 3 | 80 | 35-52 | 800 | 600 | 100 | 350 | 160 | 400 | 160 | ＜100 | Φ160/8-Φ18 | 1.0 | 45 |
| 6 | SJZ-4 | 4 | 100 | 65-100 | 800 | 600 | 100 | 360 | 160 | 480 | 160 | ＜100 | Φ180/8-Φ18 | 1.0 | 76 |
| 7 | SJZ-5- | 5 | 125 | 150 | 1000 | 744 | 128 | 420 | 180 | 570 | 200 | ＜150 | Φ210/8-Φ18 | 1.0 | 125 |
| 8 | SJZ-6 | 6 | 150 | 145-210 | 1000 | 744 | 128 | 430 | 180 | 570 | 200 | ＜150 | Φ240/8-Φ22 | 1.6 | 130 |
| 9 | SJZ-8 | 8 | 200 | 260-370 | 1300 | 1020 | 140 | 480 | 260 | 600 | 280 | ＜150 | Φ295/8-Φ22 | 1.6 | 201 |
| 10 | SJZ-10 | 10 | 250 | 400-590 | 1300 | 1020 | 140 | 520 | 300 | 680 | 330 | ＜200 | Φ350/12-Φ22 | 1.6 | 268 |
| 11 | SJZ-12 | 12 | 300 | 575-840 | 1400 | 1100 | 150 | 520 | 360 | 750 | 380 | ＜200 | Φ400/12-Φ22 | 1.6 | 335 |
| 12 | SJZ-14 | 14 | 350 | 785-1100 | 1400 | 1100 | 150 | 540 | 400 | 780 | 430 | ＜250 | Φ460/16-Φ22 | 1.6 | 430 |
| 13 | SJZ-16 | 16 | 400 | 1030-1480 | 1500 | 1100 | 150 | 540 | 420 | 860 | 480 | ＜330 | Φ515/16-Φ26 | 1.6 | 508 |
| 14 | SJZ-18 | 18 | 450 | 1300-1860 | 1500 | 1180 | 160 | 580 | 480 | 940 | 520 | ＜350 | Φ565/20-Φ26 | 1.6 | 628 |
| 15 | SJZ-20 | 20 | 500 | 1610-2300 | 1600 | 1280 | 160 | 600 | 500 | 950 | 640 | ＜350 | Φ620/20-Φ26 | 1.6 | 765 |
| 16 | SJZ-24 | 24 | 600 | 2300-3000 | 1650 | 1290 | 180 | 660 | 520 | 970 | 750 | ＜350 | Φ725/20-Φ30 | 1.6 | |
|
|
